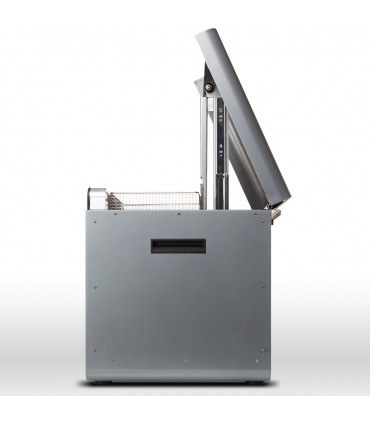

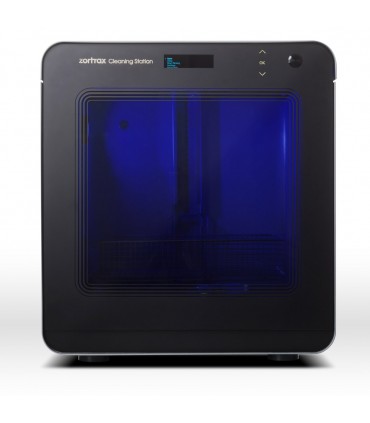

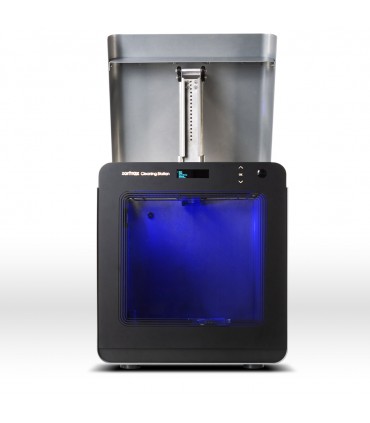

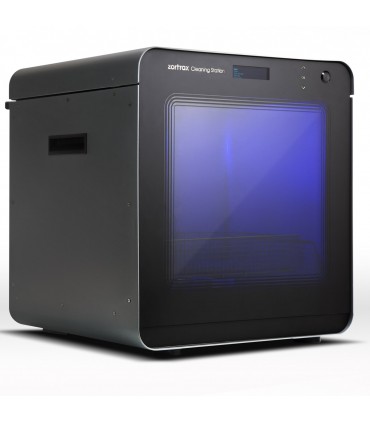

Zortrax Cleaning Station
Zortrax Cleaning Station is a device made to remove excessive, unsolidified resin from the model’s surfaces. The entire cleaning process lasts for about 5 minutes and is fully automated. This is a standalone device that can be used to support all types of resin 3D printers available on the market. It’s dedicated to post-process even most professional and demanding resins (quality approved by BASF and Henkel).
Specification
Weight and physical dimensions |
|
Device (W x D x H) | 460 x 460 x 490 mm |
Weight | 40 Kg without IPA / around 80 Kg with IPA (full tank) |
Device | |
Working area dimensions | 300 x 210 x 270 mm |
Tank capacity | 18 l. |
Filters | Two mechanical filters: polypropylene cartridge (1 micron) / stainless mesh cartridge with UV lighting (150 microns) |
Security | excesive cleaning fluid level sensor / flow meter preventing operation without the cleaning fluid in the system |
Electrical | |
AC input | 100-240 V AC 4 A 50/60 Hz |
Maximum power consumption | 48 W |
